1408979 | Phoenix Contact

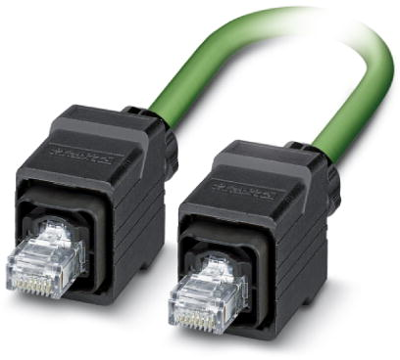

Network cable, RJ45 plug, straight to RJ45 plug, straight, Cat 5e, SF/TQ, PVC, 2 m, green
Order No.: 62P3413
EAN: 4046356857093
MPN:
1408979
NBC-R4QC/2,0-93B/R4QC
Unit Price (€ / pc.)
82.6574 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Network cable, 1408979, Phoenix Contact
Assembled PROFINET cable, CAT5e, shielded, star quad, 22 AWG stranded (7-wire), RAL 6018 (yellow-green), RJ45 plug/IP67 push/pull plastic housing to RJ45 plug/IP67 push/pull plastic housing, line, length: 2 m.
Features
- Compact angle
- PVC cable for flexible installations
- Secure connection and disconnection with reliable locking clip protection
- Ideal EMC properties, thanks to 360° shielding
- Resistant to shock and vibrations, thanks to robust molding
- High-speed data transmission with up to 1 Gbps
- Simultaneous power transmission with PoE++
- Perfect for industrial applications
Technical specifications
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | network cable | |
| AWG cross-section | AWG 22-7 | |
| Colour | green | |
| Halogen free | No | |
| Cable type | SF/TQ | |
| Cable length | 2 m | |
| Category | Cat 5e | |
| Material | PVC | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444210 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
