1038750 | Phoenix Contact

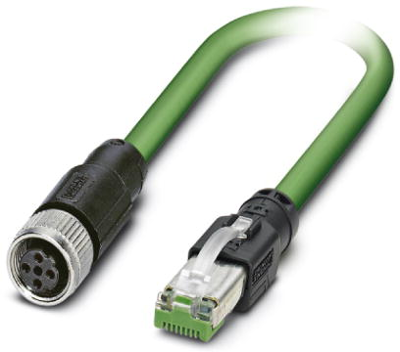

Network cable, M12 socket, straight to RJ45 plug, straight, Cat 5, SF/TQ, PUR, 1 m, green
Order No.: 61P4579
EAN: 4055626593043
MPN:
1038750
NBC-M12FSD/1,0-93C/R4AC
Unit Price (€ / pc.)
37.7944 € *
Available: 0 pcs.
Leadtime: On Request **
Network cable, 1038750, Phoenix Contact
Network cable, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position, shielded (Advanced Shielding Technology), Socket straight M12, coding: D / IP67, on Plug straight RJ45 / IP20, cable length: 1 m.
Technical specifications
| Connection (1) | M12 socket, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | network cable | |
| AWG cross-section | AWG 22-7 | |
| Colour | green | |
| Halogen free | Yes | |
| Cable type | SF/TQ | |
| Cable length | 1 m | |
| Category | Cat 5 | |
| Material | PUR | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
