1038731 | Phoenix Contact

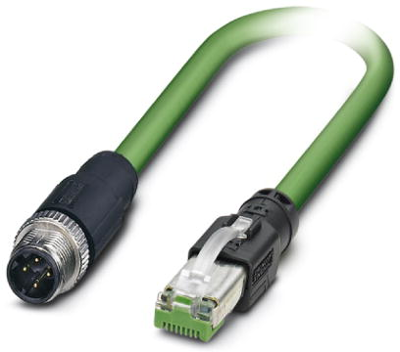

Network cable, M12-plug, straight to RJ45 plug, straight, Cat 5, SF/TQ, PUR, 5 m, green
Order No.: 61P4601
EAN: 4055626593029
MPN:
1038731
NBC-M12MSD/5,0-93C/R4AC
Unit Price (€ / pc.)
64.5099 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Network cable, 1038731, Phoenix Contact
Network cable, PROFINET CAT5 (100 Mbps), EtherCAT CAT5 (100 Mbps), 4-position, shielded (Advanced Shielding Technology), Plug straight M12, coding: D / IP67, on Plug straight RJ45 / IP20, cable length: 5 m
Technical specifications
| Connection (1) | M12-plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | network cable | |
| AWG cross-section | AWG 22-7 | |
| Colour | green | |
| Halogen free | Yes | |
| Cable type | SF/TQ | |
| Cable length | 5 m | |
| Category | Cat 5 | |
| Material | PUR | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
