2905354 | Phoenix Contact
Surge arrester, 63 A, 120-208 VAC, 2905354
Order No.: 64P6295
EAN: 4046356948029
MPN:
2905354
VAL-SEC-T2-3S-175-FM
Unit Price (€ / pc.)
365.4133 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

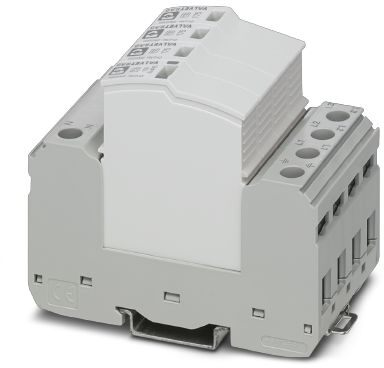

Surge arrester, 2905354, Phoenix Contact
Plug-in surge arrester, in accordance with Type 2/Class II, for 3-phase power supply networks with separate N and PE (5-conductor system: L1, L2, L3, N, PE).
Features
- Easy to maintain due to consistently pluggable protection modules
- Excellent level of information provided by mechanical/visual status indicator and remote indication contact
- More space in the control cabinet due to the narrow overall width of just 12 mm per position and use without separate backup fuse up to 315 A gG
- High-performance gas-filled surge arrester for N/PE protection
- Varistor arrester with a low leakage current
Technical specifications
| Connection | screw connection | |
| Version | surge arrester | |
| Assembly | DIN rail | |
| Rated current | 63 A | |
| Voltage | 120-208 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363030 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
