2801248 | Phoenix Contact
Surge protection device, 1 A, 24 VDC, 2801248
Order No.: 64P5889
EAN: 4046356766319
MPN:
2801248
PT-IQ-2X1+F-24DC-PT
Unit Price (€ / pc.)
197.3853 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

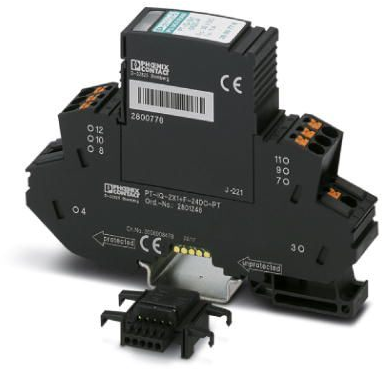

Surge protection device, 2801248, Phoenix Contact
Surge protection, consisting of protective plug and base element, with integrated multi-stage status indicator on the module for two signal wires with common reference potential. Indirect grounding via gas-filled surge arrester.
Features
- Predictive monitoring with 3-stage LED display
- Install quickly and error-free with DIN rail connectors
- Maximum ease of maintenance, thanks to the 2-piece design
- Maximum protection for MCR applications with high discharge capacity
Technical specifications
| Connection | Pluggable | |
| Version | surge protection device | |
| Assembly | DIN rail | |
| Rated current | 1 A | |
| Voltage | 24 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363030 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
