1033789 | Phoenix Contact

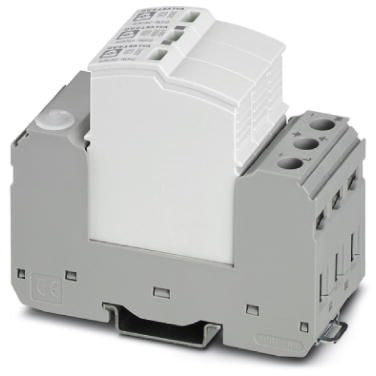

Surge arrester, 40 A, 200-220 VDC, 1033789
Order No.: 64P6277
EAN: 4055626539720
MPN:
1033789
VAL-SEC-T2-2+F-220DC-FM
Unit Price (€ / pc.)
331.3436 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Surge protection device, 1033789, Phoenix Contact
Pluggable surge protective device free of leakage current for 2-position isolated and grounded DC voltage systems with linear operating characteristic up to 220 V DC, for DIN rail mounting, 3-position base element with remote indication contact, three pluggable temperature-monitored protective elements, status message on each plug.
Features
- Easy to maintain due to consistently pluggable protection modules
- Excellent level of information provided by mechanical/visual status indicator
- More space in the control cabinet due to the narrow overall width of just 12 mm per position
- Free of leakage current so there is no influence on insulation monitoring
Technical specifications
| Connection | screw connection | |
| Version | surge arrester | |
| Assembly | DIN rail | |
| Rated current | 40 A | |
| Voltage | 200-220 VDC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363030 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
