1242262 | Phoenix Contact

Jack, 12 pole, crimp connection, screw locking, straight, 1242262

Order No.: 64P5021
EAN: 4063151445539
MPN:
1242262
Series: RF

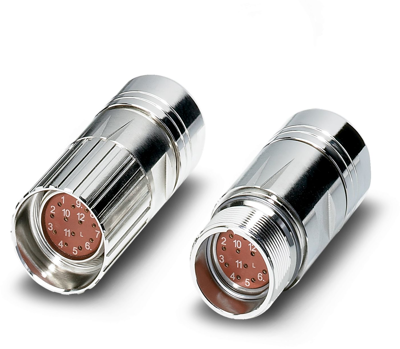

1242262 Phoenix Contact Other Circular Connectors Image 1
1242262 Phoenix Contact Other Circular Connectors Image 2
1242262 Phoenix Contact Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
21.9912 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
21.99 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9912 €
10 pcs.
20.6227 €
25 pcs.
19.4089 €
50 pcs.
18.3260 €
*incl. VAT plus shipping costs
Subject to prior sale

Coupler connector, 1242262, Phoenix Contact

Coupler connector, straight, Screw locking mechanism, M23, number of positions: 12, contact connection type: Socket, shielded: yes, degree of protection: IP67, cable diameter range: 5 mm ... 13.2 mm, number of positions: 12, connection method: Crimp connection, series: RF, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Technical specifications
Filter Property Value
Contact connection crimp connection
Version socket
Cable diameter 5 to 13.2 mm
Shell Material metal
Pin number 12 pole
Orientation straight
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
