2963721 | Phoenix Contact
Safety relays, 2 Form A (N/O), 24 V (DC), 6 A, 250 V (DC), 250 V (AC), 2963721
Order No.: 64P2759
EAN: 4017918818692
MPN:
2963721
PSR-SCP- 24UC/THC4/2X1/1X2
Unit Price (€ / pc.)
297.2501 € *
Available: 0 pcs.
Leadtime: 23 Weeks **

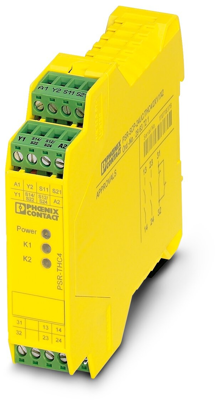

Safety relay, 2963721, Phoenix Contact
Safety relay for two-hand control devices in accordance with ISO 13851 type IIIC to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, Synchronous activation monitoring < 0.5 s, 2 N/O contacts, 1 N/C contact, Safe isolation, Width: 22.5 mm, Pluggable screw terminal block.
Features
- Automatic activation
- Two enabling and one signaling current path
Technical specifications
| Connection | screw connection | |
| Contact type | 2 Form A (N/O) | |
| Contact material | AgSnO2 | |
| Breaking capacity | 1500 VA | |
| Switching Voltage (AC) | 250 V | |
| Switching Voltage (DC) | 250 V | |
| switching current | 6 A | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85371098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
