2901430 | Phoenix Contact

Safety relays, 3 Form A (N/O) + 1 Form B (N/C), 230 V (DC), 50 Ω, 6 A, 250 V (DC), 250 V (AC), 2901430

Order No.: 64P2767
EAN: 4046356592185
MPN:
2901430
PSR-SCP-230AC/ESAM2/3X1/1X2/B
Series: PSR
2901430 Phoenix Contact Monitoring Relays
Image may differ
Unit Price (€ / pc.)
252.2086 € *
Available in 5 Days: 130 pcs. - if ordered today
Total Price:
252.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
252.2086 €

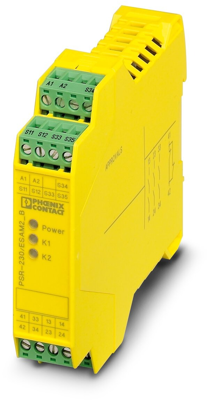

Safety relay, 2901430, Phoenix Contact

Safety relay for emergency stop and safety door up to SIL 1, SIL CL 1, Cat. 1, PL c, Depending on the application up to SIL 3, SIL CL 3, Cat. 4, PL e, Single-channel operation, 3 enabling current paths, Nominal input voltage of 230 V AC/DC, Plug-in screw terminal blocks, Basic insulation.

Technical specifications
Filter Property Value
switching current 6 A
Breaking capacity 2000 VA
Coil resistance 50 Ω
Coil voltage (DC) 230 V
Switching Voltage (AC) 250 V
Connection screw connection
Contact type 3 Form A (N/O) + 1 Form B (N/C)
Contact material AgSnO2
Switching Voltage (DC) 250 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
