2900525 | Phoenix Contact

Safety relays, 2 Form A (N/O), 24 V (DC), 50 Ω, 6 A, 250 V (DC), 250 V (AC), 2900525

Order No.: 64P2753
EAN: 4046356515658
MPN:
2900525
PSR-SCP- 24UC/ESAM4/2X1/1X2
Series: PSR
2900525 Phoenix Contact Monitoring Relays
Image may differ
Unit Price (€ / pc.)
254.7195 € *
Available in 10 days: 363 pcs. - if ordered today
Total Price:
254.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
254.7195 €

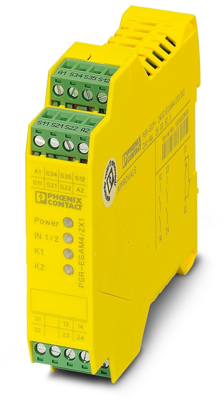

Safety relay, 2900525, Phoenix Contact

Safety relay for emergency stop and safety door monitoring up to SIL 3 or Cat. 4, PL e in accordance with EN ISO 13849, 2-channel operation, 2 enabling current paths, Nominal input voltage: 24 VDC, Plug-in screw terminal block.

Features

  • Manually monitored and automatic activation in a single device
  • Reinforced insulation
Technical specifications
Filter Property Value
Contact material AgSnO2
switching current 6 A
Connection screw connection
Switching Voltage (AC) 250 V
Switching Voltage (DC) 250 V
Coil voltage (DC) 24 V
Coil resistance 50 Ω
Breaking capacity 1500 VA
Contact type 2 Form A (N/O)
Logistics
Property Value
Country of origin DE
Customs tariff number 85371098
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
