0803224 | Phoenix Contact

Plastic label, 0803224, Phoenix Contact

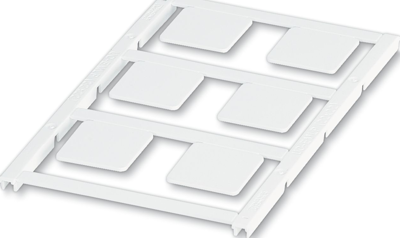

Plastic label, Sheet, white, unmarked, can be labeled with: BLUEMARK E.CARD, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, Number of individual labels: 6, text field height: 22 mm, text field width: 22 mm.

Features

• The markers, which are supplied in uniform sheets, can be printed onto quickly and easily using the BLUEMARK printing system
• The UC-EMLP -EX self-adhesive device markers have been specifically developed for marking various types of equipment in the Ex area
• The format automatically ensures printing with a high degree of positioning accuracy
• The wide temperature range means that the labels can be used in control cabinets as well as the field
• The sheets provide space for including function texts
• The marking requirements in terms of legibility, adhesion, and wipe resistance in potentially explosive areas (ATEX), according to IEC/EN 60079-0, can also be ensured following storage in typical gas atmospheres.
• These labels meet the requirements for wipe resistance in accordance with DIN EN 61010-1 against aggressive media such as acetone, ethanol, and MEK
• Thanks to the special surface and adhesive, the marker meets the demanding requirements of process engineering
