2744241 | Phoenix Contact
UNIVERSAL D-Sub bus connector, 9 pole, 2744241
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
59.2739 € *
Available in 5 Days: 303 pcs. - if ordered today
Total Price:
59.27 € *
Price list
Quantity
Price per unit*
1 pcs.
59.2739 €
5 pcs.
55.7158 €
15 pcs.
53.5976 €
*incl. VAT plus shipping costs
Subject to prior sale

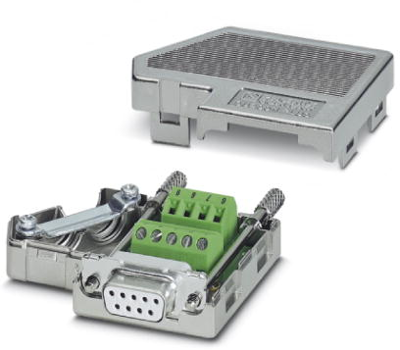

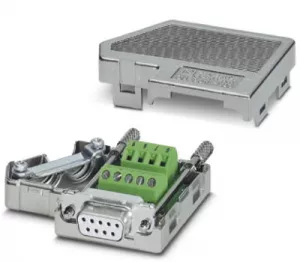

Bus connector, 2744241, Phoenix Contact
Two cable infeeds are often required on the D-SUB plugs used in order to build fieldbus systems with RS-485 interfaces. The SUBCON-PLUS plugs range fulfills this requirement and routes the connection to screw terminal blocks – however, duplicated – for two cables. This means clarity during wiring and it simplifies every startup. These plugs are of course also shielded against EMC influences with a metallized housing. In addition, by placing the connection block in either the upper or lower shell, it is possible to select the cable infeed on site from the right or left.
Features
- Assembly under field conditions
- Separate terminal blocks for each cable
- High transmission speed
- High level of EMC
- Flexibility in terms of cable entry selection
- Can be used universally
- Change to the D-SUB orientation through a reversible connection block
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Bussystem | UNIVERSAL | |
| Pin number | 9 pole | |
| Degree of protection (IP) | IP20 | |
| Bus Connection | D-Sub | |
| Contact connection | PCB connection | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
