2744018 | Phoenix Contact
PHOENIX CO 2744018
Order No.: 64P6992
EAN: 4017918888817
MPN:
2744018
SUBCON-PLUS 9/M
Unit Price (€ / pc.)
87.2865 € *
Available: 1 pcs.
Leadtime: 2 Weeks **
Total Price:
87.29 € *
Price list
Quantity
Price per unit*
1 pcs.
87.2865 €
5 pcs.
82.0505 €
15 pcs.
78.9089 €
50 pcs.
75.4103 €
150 pcs.
72.2687 €
*incl. VAT plus shipping costs
**Subject to prior sale

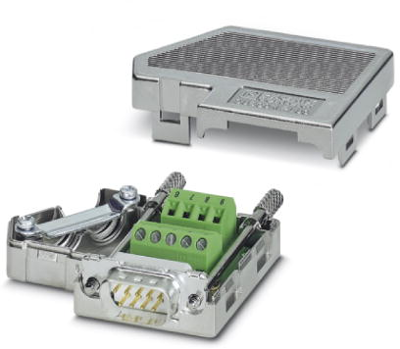

Bus connector, 2744018, Phoenix Contact
Two cable infeeds are often required on the D-SUB plugs used in order to build fieldbus systems with RS-485 interfaces. The SUBCON-PLUS plugs range fulfills this requirement and routes the connection to screw terminal blocks – however, duplicated – for two cables. This means clarity during wiring and it simplifies every startup. These plugs are of course also shielded against EMC influences with a metallized housing. In addition, by placing the connection block in either the upper or lower shell, it is possible to select the cable infeed on site from the right or left.
Technical specifications
| Bus Connection | D-Sub | |
| Contact connection | PCB connection | |
| Orientation | angled | |
| Pin number | 9 pole | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
