2203455 | Phoenix Contact

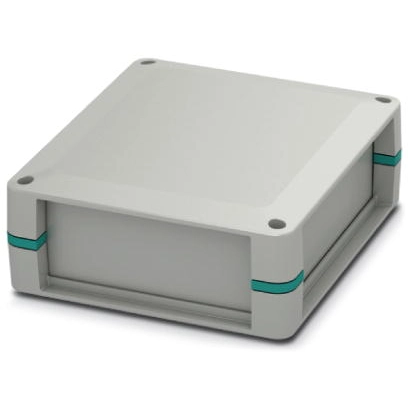

PC enclosure, (L x W x H) 47 x 237 x 195 mm, light gray (RAL 7035), IP40, 2203455
Unit Price (€ / pc.)
70.5313 € *
Available in 10 days: 1 pcs. - if ordered today
Universal housing, 2203455, Phoenix Contact
Complete housing for PCBs, Fixed to the corner inlays, Includes housing half shells, Side panels closed, Corner inlays with PCB attachment, Screws for housing and PCB attachment, Light gray housing with turquoise blue corner inlays
Features
- High degree of application flexibility, thanks to the modular housing design
- Flexible PCB attachment, adapts to virtually all form factors
- Practical customization options
- Reduced logistics outlay, thanks to components which are compatible with one another
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PC | |
| Colour | light gray | |
| Length | 47 mm | |
| Degree of protection (IP) | IP40 | |
| Height | 195 mm | |
| RAL number | 7035 | |
| Width | 237 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
