2203334 | Phoenix Contact

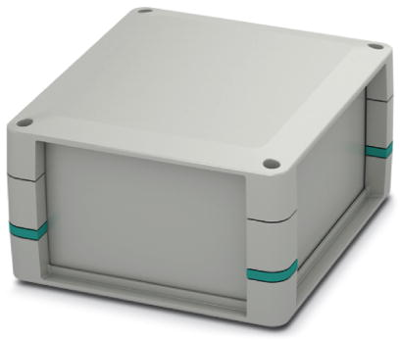

PC enclosure, (L x W x H) 67 x 145 x 125 mm, light gray (RAL 7035), IP40, 2203334
Unit Price (€ / pc.)
51.884 € *
Available in 5 Days: 1 pcs. - if ordered today
Universal housing, 2203334, Phoenix Contact

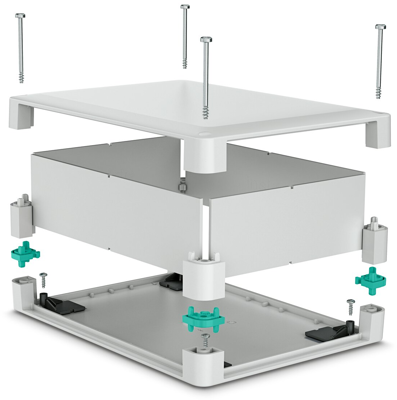

Complete housing for PCBs, Can be positioned flexibly, Includes housing half shells, Side panels closed, Adhesive domes for PCB attachment, Screws for housing and PCB attachment, Light gray housing with turquoise blue corner inlays
Features
- High degree of application flexibility, thanks to the modular housing design
- Flexible PCB attachment, adapts to virtually all form factors
- Practical customization options
- Reduced logistics outlay, thanks to components which are compatible with one another
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 145 mm | |
| Degree of protection (IP) | IP40 | |
| Height | 125 mm | |
| Length | 67 mm | |
| RAL number | 7035 | |
| Material | PC | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
