2203332 | Phoenix Contact

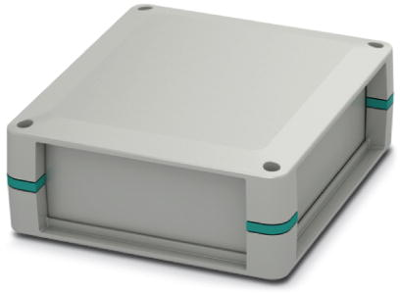

PC enclosure, (L x W x H) 47 x 145 x 125 mm, light gray (RAL 7035), IP40, 2203332
Unit Price (€ / pc.)
47.7428 € *
Available in 10 days: 19 pcs. - if ordered today
Universal housing, 2203332, Phoenix Contact

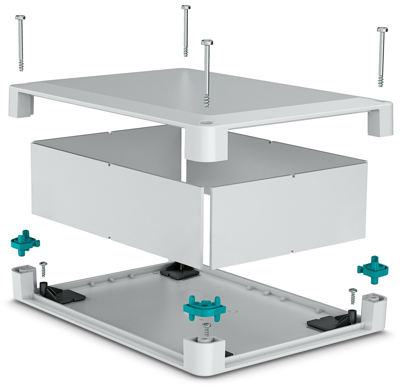

Complete housing for PCBs, Can be positioned flexibly, Includes housing half shells, Side panels closed, Adhesive domes for PCB attachment, Screws for housing and PCB attachment, Light gray housing with turquoise blue corner inlays
Features
- High degree of application flexibility, thanks to the modular housing design
- Flexible PCB attachment, adapts to virtually all form factors
- Practical customization options
- Reduced logistics outlay, thanks to components which are compatible with one another
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 125 mm | |
| Material | PC | |
| Width | 145 mm | |
| Degree of protection (IP) | IP40 | |
| Length | 47 mm | |
| RAL number | 7035 | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
