2203330 | Phoenix Contact

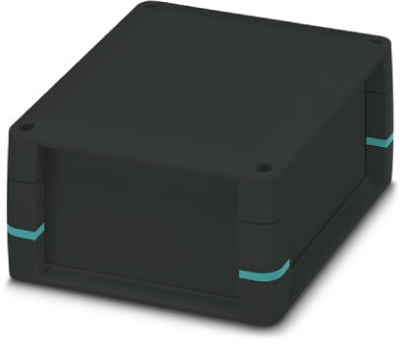

PC enclosure, (L x W x H) 67 x 125 x 87 mm, black (RAL 9005), IP40, 2203330
Unit Price (€ / pc.)
43.5421 € *
Available in 5 Days: 8 pcs. - if ordered today
Universal housing, 2203330, Phoenix Contact

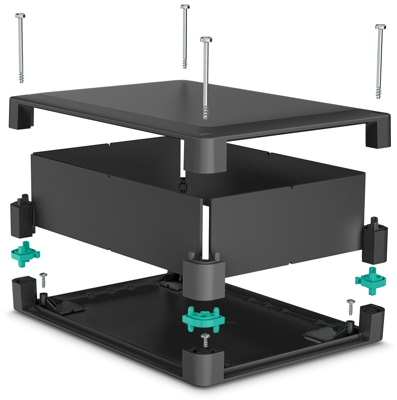

Complete housing for PCBs, Can be positioned flexibly, Includes housing half shells, Side panels closed, Adhesive domes for PCB attachment, Screws for housing and PCB attachment, Housing: black with turquoise blue corner inlays
Features
- High degree of application flexibility, thanks to the modular housing design
- Flexible PCB attachment, adapts to virtually all form factors
- Practical customization options
- Reduced logistics outlay, thanks to components which are compatible with one another
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Width | 125 mm | |
| Material | PC | |
| Degree of protection (IP) | IP40 | |
| Height | 87 mm | |
| Length | 67 mm | |
| RAL number | 9005 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
