1628417 | Phoenix Contact
PHOENIX 1628417
Active
Total price
(
220.4118 €
* / pcs.)
220.41 €
Currently not in stock, we will order for you
Please send price/quantity requests to info@buerklin.com
Description
Product by Phoenix Contact at Bürklin Elektronik

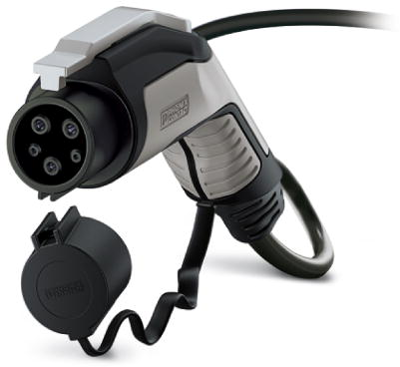

Charging cable, 1628417, Phoenix Contact
AC charging cable with vehicle charging connector and free cable end for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, for installation at charging stations for e-mobility (EVSE).
Features
- Convenient handling due to the ergonomic
- Longitudinal water tightness reliably prevents water ingress
- Laser-marked mating face
Technical specifications
| Connection (1) | type 1 | |
| Connection (2) | open end | |
| Number of phases | 1 | |
| Colour | black | |
| Cable length | 4 m | |
| Loading mode | mode 3 | |
| Cable cross-section | 3 x 6.0 mm² + 1 x 0.75 mm² | |
| Rated voltage | 250 V | |
| Rated current | 32 A |
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
