1628210 | Phoenix Contact
Charging cable, 10 m, type 1 to type 2, 1 phase, mode 3, 32 A, 250 V, 1628210
Order No.: 65P0826
EAN: 4055626398808
MPN:
1628210
EV-TAG3PK-1AC32A-10M6,0ESBK01
Unit Price (€ / pc.)
366.6985 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

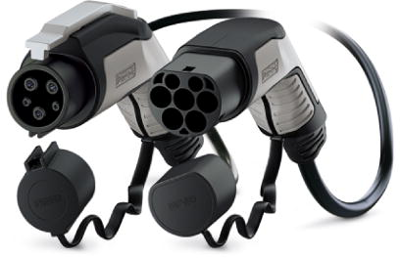

Charging cable, 1628210, Phoenix Contact
Mobile AC charging cable with vehicle charging connector and infrastructure charging plug for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, compatible with type 2 infrastructure charging sockets at charging stations for e-mobility (EVSE).
Features
- Convenient handling due to the ergonomic
- Longitudinal water tightness reliably prevents water ingress
- Laser-marked mating face
Technical specifications
| Connection (1) | type 1 | |
| Connection (2) | type 2 | |
| Number of phases | 1 | |
| Colour | black | |
| Cable length | 10 m | |
| Loading mode | mode 3 | |
| Cable cross-section | 3 x 6.0 mm² + 1 x 0.5 mm² | |
| Rated voltage | 250 V | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
