1012948 | Phoenix Contact
Charging cable, 6.5 m, type 2 to open end, 3 phase, mode 3, 32 A, 480 V, 1012948
Order No.: 65P0145
EAN: 4055626488998
MPN:
1012948
EV-T2G3C-3AC32A-6,5M6,0ESBK01
Unit Price (€ / pc.)
235.5605 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

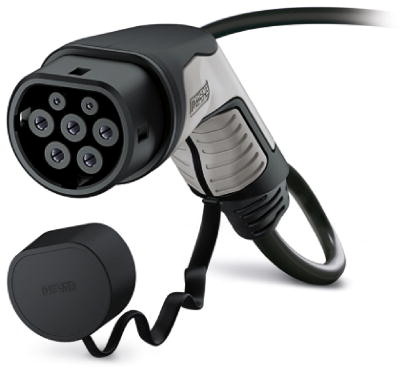

Charging cable, 1012948, Phoenix Contact
AC charging cable with vehicle charging connector and free cable end for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets, for installation at charging stations for e-mobility (EVSE).
Features
- Convenient handling due to the ergonomic
- Longitudinal water tightness reliably prevents water ingress
- Laser-marked mating face
Technical specifications
| Connection (1) | type 2 | |
| Connection (2) | open end | |
| Number of phases | 3 | |
| Colour | black | |
| Cable length | 6.5 m | |
| Loading mode | mode 3 | |
| Cable cross-section | 5 x 6.0 mm² + 1 x 0.5 mm² | |
| Rated voltage | 480 V | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
