1452291 | Phoenix Contact

Valve connector, DIN shape CI, 3 pole, 24 V, 0.25-1.5 mm², 1452291

Order No.: 61P9479
EAN: 4046356536462
MPN:
1452291
SACC-VB-3CON-M12/CI-1L-SV 24V
Series: SACC

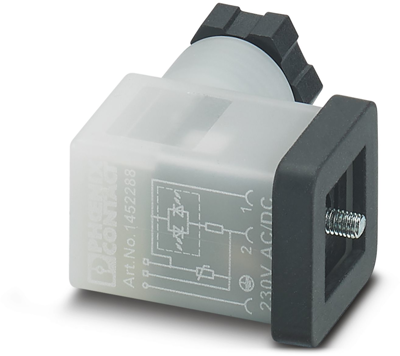

1452291 Phoenix Contact DIN Valve Connectors Image 1
1452291 Phoenix Contact DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.6616 € *
Available: 0 pcs.
Available in 10 days: 253 pcs.
Leadtime: 2 Weeks **
Total Price:
12.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
12.6616 €

Valve connector, 1452291, Phoenix Contact

Valve connector, 3-pole, valve connector CI (9.4 mm), with 1 LED, wired with varistor, screw connection, cable gland M12, cable outer diameter 4-6 mm.

Technical specifications
Version DIN shape CI
Cable cross-section 0.25-1.5 mm²
Pin number 3 pole
Rated voltage 24 V
Degree of protection (IP) IP65
Wiring varistor
LED display Yes
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
