1452220 | Phoenix Contact

Valve connector, DIN shape B, 3 pole, 230 V, 0.25-1.5 mm², 1452220

Order No.: 61P9490
EAN: 4046356536394
MPN:
1452220
SACC-VB-3CON-M16/B-1L-SV 230V
Series: SACC

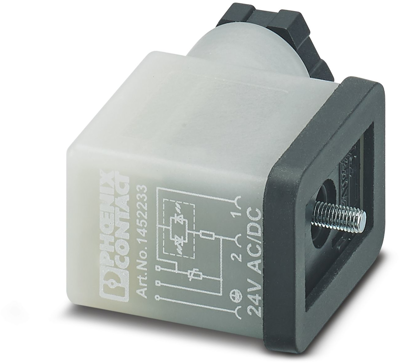

1452220 Phoenix Contact DIN Valve Connectors Image 1
1452220 Phoenix Contact DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.2467 € *
Available in 10 days: 147 pcs. - if ordered today
Total Price:
8.25 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2467 €
5 pcs.
7.8302 €
10 pcs.
7.4494 €
15 pcs.
6.9972 €
20 pcs.
6.6045 €
*incl. VAT plus shipping costs
Subject to prior sale

Valve connector, 1452220, Phoenix Contact

Valve connector, 3-pole, valve connector B (10 mm), with 1 LED, wired with varistor, screw connection, cable gland M16, cable outer diameter 6-8 mm.

Technical specifications
Version DIN shape B
Cable cross-section 0.25-1.5 mm²
Pin number 3 pole
Rated voltage 230 V
Degree of protection (IP) IP65
Wiring varistor
LED display Yes
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
