1452152 | Phoenix Contact

Valve connector, DIN shape A, 3 pole, 110 V, 0.25-1.5 mm², 1452152

Order No.: 61P9483
EAN: 4046356536325
MPN:
1452152
SACC-VB-3CON-M16/A-1L-SV 110V
Series: SACC

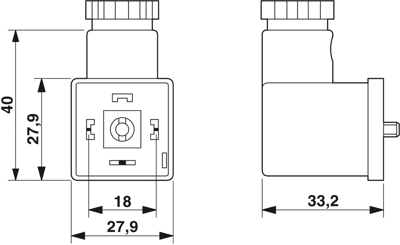

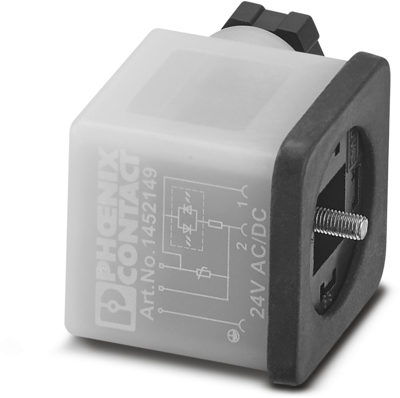

1452152 Phoenix Contact DIN Valve Connectors Image 1
1452152 Phoenix Contact DIN Valve Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.6616 € *
Available in 10 days: 575 pcs. - if ordered today
Total Price:
12.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.6616 €

Valve connector, 1452152, Phoenix Contact

Valve connector, 3-pole, valve connector A, with 1 LED, wired with varistor, screw connection, cable gland M16, cable outer diameter 6-8 mm.

Technical specifications
Version DIN shape A
Cable cross-section 0.25-1.5 mm²
Pin number 3 pole
Rated voltage 110 V
Degree of protection (IP) IP65
Wiring varistor
LED display Yes
Type of locking central screw
Logistics
Country of origin HU
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
