1399932 | Phoenix Contact
Power supply, 1-phase, 24 VDC, 1.3 A, 30 W, 1399932
Unit Price (€ / pc.)
43.8136 € *
Available in 5 Days: 183 pcs. - if ordered today
Total Price:
43.81 € *
Price list
Quantity
Price per unit*
1 pcs.
43.8136 €
5 pcs.
41.9087 €
10 pcs.
40.1625 €
25 pcs.
38.5560 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supply, 1399932, Phoenix Contact

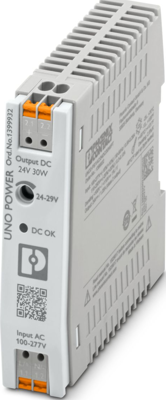

Primary-switched power supply unit, UNO POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 1.3 A, adjustable from 24 V DC - 29 V DC.
Features
- Save space in the control cabinet thanks to an extremely narrow overall width
- Save energy, thanks to a high degree of efficiency
- Outdoor installation possible, with a wide temperature range of -25°C - +70°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Number of outputs | 1 | |
| Output current | 1.3 A | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 110-250 VDC | |
| Power | 30 W | |
| efficiency | 90.5 % | |
| Degree of protection (IP) | IP20 | |

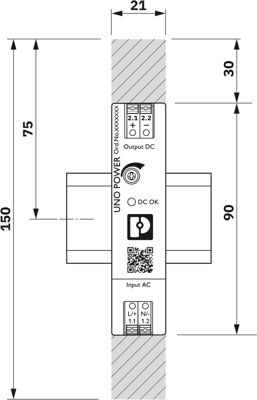

| Width | 21 mm | |
| Height | 90 mm | |
| Depth | 90 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | VN |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
