2200538 | Phoenix Contact
Plastic housing lower part, (L x W x H) 107.3 x 90.4 x 99 mm, light gray, IP20, 2200538
Unit Price (€ / pc.)
116.0131 € *
Available: 0 pcs.
Leadtime: 6 Weeks **

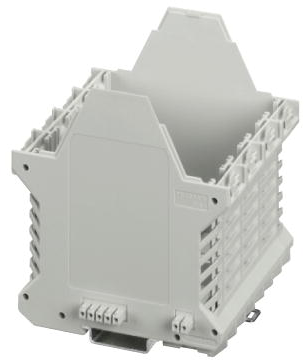

Lower part of housing, 2200538, Phoenix Contact
DIN rail housing, lower housing part with metal foot catch, 4 FE contacts, tall design and vents, Width: 90.4 mm, Height: 99 mm, Depth: 107.3 mm, Color: light grey (7035), Cross connection: integrated bus connector, number of positions cross connector: 5 + 2, Bus connector: 5 parallel contacts, 2 serial contacts
Features
- Tool-free mounting
- Flammability rating V0 in accordance with UL 94
- Variety of connection technology
- Can be mounted on the DIN rail
- With integrated or DIN-rail-mountable bus connector as an option
Technical specifications
| Width | 90.4 mm | |
| Colour | light gray | |
| Height | 99 mm | |
| Length | 107.3 mm | |
| Material | plastic | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
