1688913 | Phoenix Contact

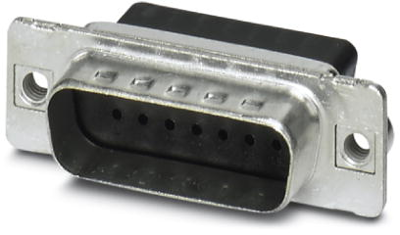

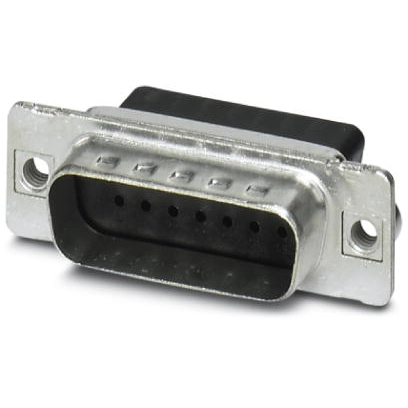

D-Sub plug, 15 pole, straight, crimp connection, 1688913
Order No.: 62P5259
EAN: 4017918823061
MPN:
1688913
VS-15-ST-DSUB-CD-MG
Unit Price (€ / pc.)
10.5553 € *
Available: 0 pcs.
Leadtime: 46 Weeks **
Total Price:
10.56 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5553 €
10 pcs.
9.4962 €
100 pcs.
8.0801 €
*incl. VAT plus shipping costs
**Subject to prior sale
D-Sub plug, 1688913, Phoenix Contact
D-SUB contact carrier, Shell size 2, for 15 signal contacts, pin contact type, for crimp contacts, straight, attachment with M3 thread, for VS-15.
Features
- Unshielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Performance level | 1 | |
| Version | pin header | |
| Contact connection | crimp connection | |
| Assembly | straight | |
| Pin number | 15 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
