1688887 | Phoenix Contact

D-Sub socket, 15 pole, standard, equipped, straight, solder cup, 1688887

Order No.: 62P5235
EAN: 4017918823030
MPN:
1688887
VS-15-BU-DSUB-EG
Series: VS-..

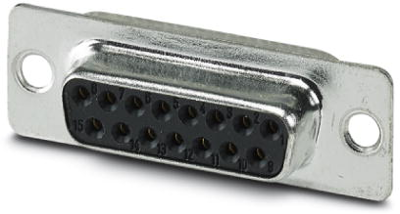

1688887 Phoenix Contact D-Sub Connectors Image 1
1688887 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.9131 € *
Available in 10 days: 439 pcs. - if ordered today
Total Price:
8.91 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9131 €
10 pcs.
8.1872 €
50 pcs.
7.4613 €
100 pcs.
6.7235 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 1688887, Phoenix Contact

D-SUB contact insert, shell size 2, with 15 signal contacts, type of contact socket, with solder cup, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15.

Features

  • Shielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Version socket header
Pole image standard
Contact connection solder cup
Additional parts equipped
Assembly straight
Pin number 15 pole
Type of locking through hole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
