1688803 | Phoenix Contact
D-Sub socket, 9 pole, standard, equipped, straight, solder cup, 1688803
Order No.: 62P5183
EAN: 4017918822934
MPN:
1688803
VS-09-BU-DSUB-EG
Unit Price (€ / pc.)
7.5803 € *
Available: 0 pcs.
Leadtime: 57 Weeks **
Total Price:
7.58 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5803 €
10 pcs.
6.8187 €
100 pcs.
5.7953 €
*incl. VAT plus shipping costs
**Subject to prior sale

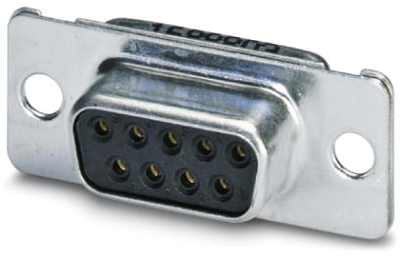

D-Sub socket, 1688803, Phoenix Contact
D-SUB contact insert, shell size 1, with 9 signal contacts, contact type female, with solder cup, straight, mounting by 3 mm hole, for mounting frame and shell housing VS-09.
Features
- Contact material: Copper alloy
- Housing material: Steel, tin-plated
- Flammability class according to UL 94: V0
- Overvoltage category: III
- Pollution degree: 2
Technical specifications
| Version | socket header | |
| Additional parts | equipped | |
| Contact connection | solder cup | |
| Assembly | straight | |
| Pole image | standard | |
| Pin number | 9 pole | |
| Type of locking | through hole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
