1688832 | Phoenix Contact

D-Sub plug, 9 pole, standard, straight, crimp connection, 1688832

Order No.: 62P5214
EAN: 4017918822965
MPN:
1688832
VS-09-ST-DSUB-CD-G
Series: VS-..

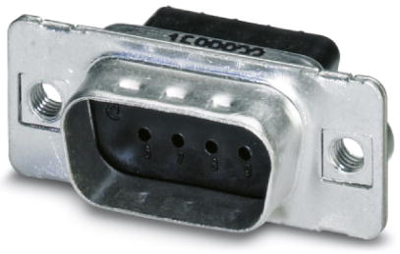

1688832 Phoenix Contact D-Sub Connectors Image 1
1688832 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.2348 € *
Available in 10 days: 1,960 pcs. - if ordered today
Total Price:
82.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
8.2348 €

D-Sub plug, 1688832, Phoenix Contact

D-SUB contact carrier, Shell size 1, for 9 signal contacts, pin contact type, for crimp contacts, straight, attachment with M3 thread, for VS-09.

Features

  • Unshielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Version pin header
Pole image standard
Performance level 1
Contact connection crimp connection
Assembly straight
Pin number 9 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
