2926399 | Phoenix Contact
Connecting line, 2 m, D-Sub plug, 9 pole to open end, 2926399
Order No.: 64P3490
EAN: 4046356546942
MPN:
2926399
CABLE-D- 9SUB/M/OE/0,25/S/2,0M
Unit Price (€ / pc.)
56.5488 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

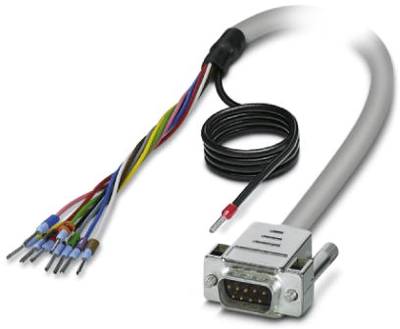

Cable, 2926399, Phoenix Contact
Assembled shielded round cable, Connection 1: Single wires (9-positions). The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end. Connection 2: D-SUB pin strip (1x9-positions), Cable length: 2 m.
Features
- Individual wire marking
- Screw connection
- Open end at one end
- Shield connection
Technical specifications
| Connection (1) | D-Sub plug, 9 pole | |
| Connection (2) | open end | |
| Version | connecting line | |
| Colour | gray | |
| Cable type | AWG 24, shielded | |
| Cable length | 2 m | |
| Pin configuration | 1:1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
