1603517 | Phoenix Contact
Receptacle, 1.0-1.5 mm², AWG 16-14, crimp connection, nickel-plated/gold-plated, 1603517
Unit Price (€ / pc.)
1.7255 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7255 €
10 pcs.
1.5827 €
50 pcs.
1.4399 €
100 pcs.
1.2971 €
*incl. VAT plus shipping costs
Subject to prior sale

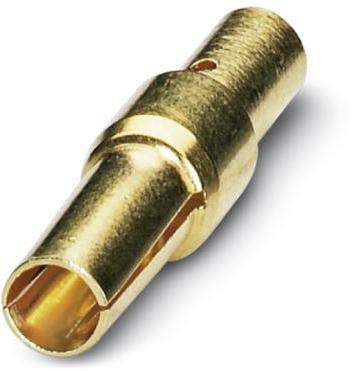

Socket contact, 1603517, Phoenix Contact
Crimp contact, Turned, Contact diameter: 2 mm, Crimp range: 1 mm² - 1.5 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Contact connection | crimp connection | |
| Insulation diameter | 2-3.5 mm | |
| AWG cross-section | AWG 16-14 | |
| Cable cross-section | 1.0-1.5 mm² | |
| contact surface | nickel-plated/gold-plated | |
| Contact material | copper-zinc |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
