1596772 | Phoenix Contact
Receptacle, 0.08-0.22 mm², crimp connection, nickel-plated/gold-plated, 1596772
Order No.: 62P3710
EAN: 4046356212601
MPN:
1596772
RC-11S2000
Unit Price (€ / pc.)
0.8330 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7497 €
100 pcs.
0.6426 €
*incl. VAT plus shipping costs
**Subject to prior sale

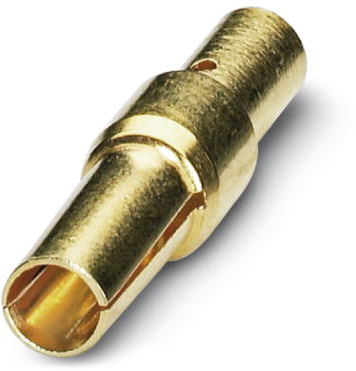

Socket contact, 1596772, Phoenix Contact
Crimp contact, Turned, Single contact, Contact diameter: 1 mm, Crimp range: 0.08 mm² - 0.22 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Version | receptacle | |
| Insulation diameter | 0.6-2.13 mm | |
| Contact connection | crimp connection | |
| Contact material | Copper-Zinc | |
| contact surface | nickel-plated/gold-plated | |
| Cable cross-section | 0.08-0.22 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
