1241921 | Phoenix Contact

Pin contact, 0.06-1.0 mm², crimp connection, nickel-plated/gold-plated, 1241921

Order No.: 64P0373
EAN: 4063151459765
MPN:
1241921
SF-10KP0,06-1,00
Series: SF
1241921 Phoenix Contact Crimp Contacts
Image may differ
Unit Price (€ / pc.)
1.7969 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.7969 €

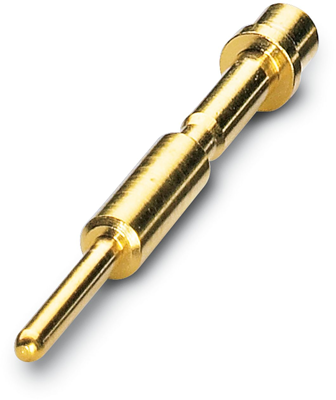

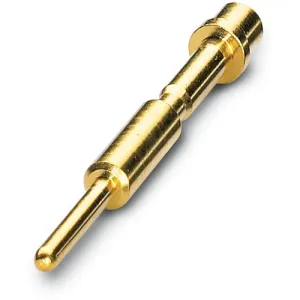

Crimp contact, 1241921, Phoenix Contact

Crimp contact, pin, turned, single contact, contact diameter: 1 mm, crimp range: 0.06 mm²-1 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
contact surface nickel-plated/gold-plated
Contact connection crimp connection
Cable cross-section 0.06-1.0 mm²
Version pin contact
Contact material copper-zinc
Insulation diameter 1.1-2.3 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
