1237992 | Phoenix Contact

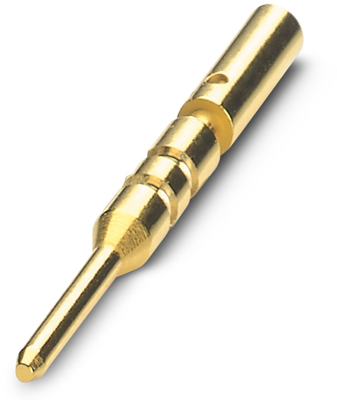

Pin contact, 0.06-0.25 mm², crimp connection, nickel-plated/gold-plated, 1237992

Order No.: 64P0371
EAN: 4063151461232
MPN:
1237992
Phoenix Contact
default L
Image may differ
Print
Key Specification:
Version pin contact
Cable cross-section 0.06-0.25 mm²
Contact connection crimp connection
Contact material Copper-Zinc
Show 15 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.9992 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
2.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.9992 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Crimp contact, 1237992, Phoenix Contact

Crimp contact, pin, turned, single contact, contact diameter: 0.6 mm, crimp range: 0.06 mm²-0.25 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
Version pin contact
Contact connection crimp connection
Contact material Copper-Zinc
contact surface nickel-plated/gold-plated
Cable cross-section 0.06-0.25 mm²
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Variations
1 item in 15 variations
