1238254 | Phoenix Contact

Pin contact, 0.25-2.5 mm², crimp connection, nickel-plated/gold-plated, 1238254

Order No.: 64P0388
EAN: 4063151461379
MPN:
1238254
SF-20KP0,25-2,50/VPE500
Series: SF
1238254 Phoenix Contact Crimp Contacts Image 1
1238254 Phoenix Contact Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
505.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
1.0115 €

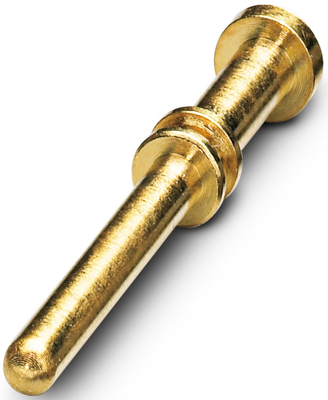

Crimp contact, 1238254, Phoenix Contact

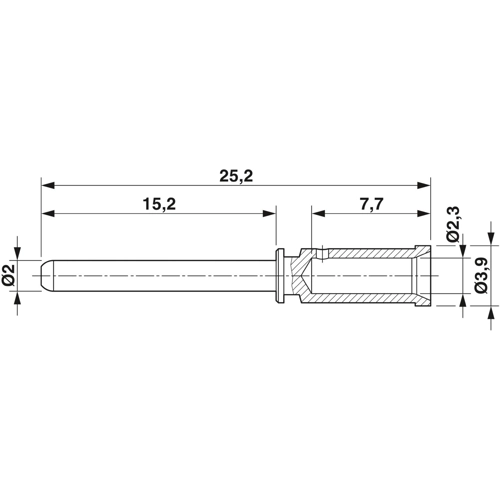

Crimp contact, pin, turned, contact diameter: 2 mm, crimp range: 0.25 mm²-2.5 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
contact surface nickel-plated/gold-plated
Contact connection crimp connection
Cable cross-section 0.25-2.5 mm²
Version pin contact
Contact material copper-zinc
Insulation diameter 2.3-3.9 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
