2966113 | Phoenix Contact
Interface relay 1 Form C (NO/NC), 48 V (DC), 10 kΩ, 6 A, 250 V (DC), 250 V (AC), 2966113
Unit Price (€ / pc.)
19.4684 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
19.47 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4684 €
10 pcs.
18.1475 €
25 pcs.
17.0051 €
50 pcs.
15.9817 €
*incl. VAT plus shipping costs
Subject to prior sale

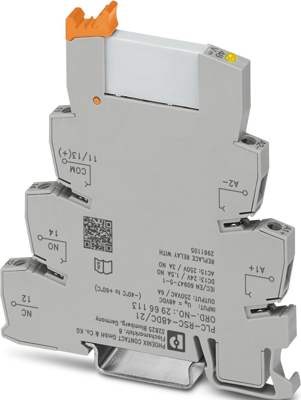

Interface relay module, 2966113, Phoenix Contact
PLC-INTERFACE, consisting of basic terminal block PLC-BSC/21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 1 changeover contact, input voltage 48 V DC.
Features
- Slim design
- Efficient connection to system cabling using V8 adapter
- Safe isolation between coil and contact side
- RT III sealed relay
- Integrated input circuit and interference suppression circuit
- Functional plug-in bridges
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 1 Form C (NO/NC) | |
| Rated voltage (DC) | 250 V | |
| Coil voltage (DC) | 48 V | |
| Contact material | AgSnO | |
| Rated current | 6 A | |
| Product type | relay coupler | |
| Rated voltage (AC) | 250 V | |
| Coil type | monostable | |
| Coil resistance | 10 kΩ | |
| Connection | screw connection | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
