1404281 | Phoenix Contact

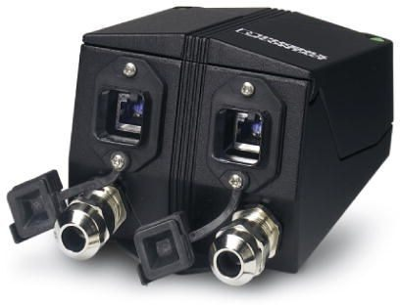

Terminal socket, 2 x RJ45, horizontal, 1-row, (W x H x D) 98 x 81 x 149 mm, black, 1404281
Order No.: 62P5703
EAN: 4046356305389
MPN:
1404281
VS-TO-RO-MCBK-F1411/1411
Unit Price (€ / pc.)
259.8127 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Terminal socket VS-TO-RO-MCBK-F1411/1411
Terminal socket RJ45 IP65/67 Push-Pull, 2 slots variant 14, with protective plugs, 2 cable entries
The technical characteristics of 1404281 from Phoenix Contact at a glance
- Article description : VS-TO-RO-MCBK-F1411/1411
- Kategorie : 6
- Connector housing material : Die-cast aluminum alloy, powder coated
- min. Ambient temperature : -40 °C
- suitable for number of sockets/couplings : 2
- max. Ambient temperature : 70 °C

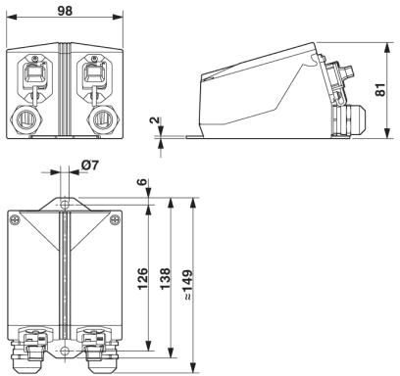

Technical specifications
| Arrangement | horizontal, 1-row | |
| Connection | 2 x RJ45 | |
| Version | terminal socket | |
| Width | 98 mm | |
| Colour | black | |
| Height | 81 mm | |
| Depth | 149 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
