1404281 | Phoenix Contact

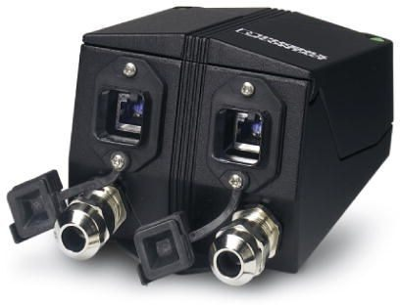

Terminal socket, 2 x RJ45, horizontal, 1 row, (W x H x D) 98 x 81 x 149 mm, black, 1404281
Unit Price (€ / pc.)
262.4069 € *
Standard delivery time from the manufacturer is: On Request
Terminal socket, 1404281Phoenix Contact
Terminal outlet, degree of protection: IP65, CAT6, material: Metal, connection method: Insulation displacement connection, color: black.
Features
- Easy installation, thanks to captive cover screws
- Robust design
- Integrated cable management system
- For the connection of 2x RJ45 IP65/67 connectors
- Including covers for protection against environmental influences
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | terminal socket | |
| Connection | 2 x RJ45 | |
| Arrangement | horizontal, 1 row | |

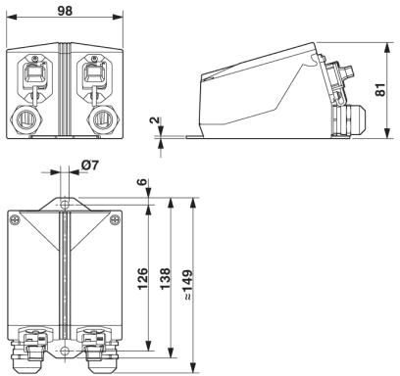

| Width | 98 mm | |
| Height | 81 mm | |
| Depth | 149 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
