3241196 | Phoenix Contact
O-ring for PG11, 3241196
Unit Price (€ / pc.)
0.3808 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

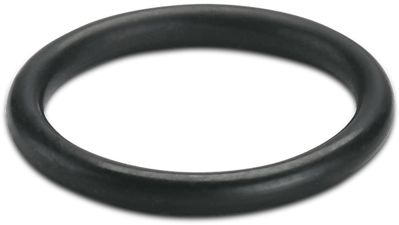

Sealing ring WP-OR PG11
Sealing ring, height: 1.8 mm, diameter: 19.6 mm, color: black.
The technical characteristics of 3241196 from Phoenix Contact at glance
- Inner diameter : 16 mm
- Outer diameter : 19.6 mm
- Article description : WP-OR PG11
- Material : Plastic
- Suitable for thread size (PG) : No
- Suitable for thread size (NPT) : No
- min. Thickness : 1.8 mm
- Suitable for thread size (metric) : Pg11
Further links to Phoenix Contact 3241196
You can find more information about Phoenix Contact under the following links 3241196
Technical specifications
| Colour | black | |
| Suitable for | PG11 | |
| Height | 1.8 mm | |
| Internal thread | 16 mm | |
| Material | NBR | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -20 °C | |
| Accessory Type | o-ring |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 40169300 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
