1411073 | Phoenix Contact

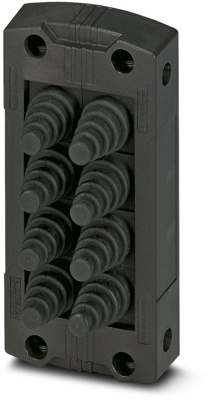

Sealing frame, size B16, 8 conical grommets, conductor Ø 2-11 mm, (L x W x H) 120 x 58 x 20 mm, PA/NBR, black, 1411073

Order No.: 60P7109
EAN: 4046356921879
MPN:
1411073
CES-B16-8XSRC-BK
Series: CES
1411073 Phoenix Contact Cable Management Accessories
Image may differ
Unit Price (€ / pc.)
50.9915 € *
Available in 10 days: 8 pcs. - if ordered today
Total Price:
50.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
50.9915 €

Sealing frame CES-B16-8XSRC-BK

Sealing frame with screw cap, size: B16, with 8 already mounted cone grommets for conductor diameters 2 mm-11mm.

The technical characteristics of 1411073 from Phoenix Contact at glance

  • Hole diameter : 5.5 mm
  • Abbreviation (according to standard) : not relevant
  • Nominal pressure series : not relevant
  • Nominal width : not relevant
  • Surface protection (according to standard) : not available
  • Nominal dimension of the forming element : not relevant
  • Surface protection : not relevant
  • Standard number (form letter) : not relevant
  • Surface finish : not relevant
  • Length of the mounting distance : 32 mm
  • Profile abbreviation : not relevant
  • Hole spacing in transverse direction : 103 mm
  • Article description : CES-B16-8XSRC-BK
  • Dimensional standard output : not relevant
  • Number of holes : 1
  • Material : Plastic
  • Material (according to standard) : not available
  • min. Thickness : 20 mm

Further links to Phoenix Contact 1411073

You can find more information about Phoenix Contact under the following links 1411073

Technical specifications
Filter Property Value
min. operating temperature -40 °C
Version size B16, 8 conical grommets, conductor Ø 2-11 mm
max. operating temperature 120 °C
Width 58 mm
Material PA/NBR
Length 120 mm
Product type sealing frame
Colour black
Height 20 mm
Logistics
Property Value
Customs tariff number 39269097
Country of origin PL
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
