1423972 | Phoenix Contact
PHOENIX 1423972
Order No.: 65P2004
EAN: 4055626365909
MPN:
1423972
QPD H3PE2,5 4X9-14 BK
Unit Price (€ / pc.)
54.6924 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

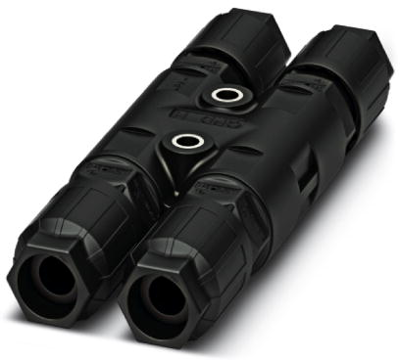

H distributor, 1423972, Phoenix Contact
H distributor, QUICKON connection, Number of positions: 3+PE, 1-2.5 mm², 690 V, 20 A, Black, with four QUICKON nuts, External cable diameter: 9-14 mm
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Flexible and compact - by connecting connections internally
Technical specifications
| Connection | IDC connection | |
| Version | H-adapter | |
| Design | H shape | |
| Colour | black | |
| Cable diameter | 9 to 14 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Rated voltage IEC | 690 V | |
| Rated voltage UL/CSA | 600 V | |
| Rated current IEC | 20 A | |
| Rated current UL/CSA | 12 A | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP66/IP68/IP69K |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
