1414413 | Phoenix Contact
PHOENIX CO 1414413
Order No.: 61P8255
EAN: 4055626026701
MPN:
1414413
SACC-CC-8QO SH PN
Unit Price (€ / pc.)
50.6702 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

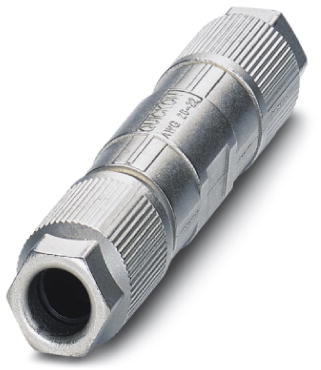

Conductor connector, 1414413, Phoenix Contact
Cable connector, PROFINET CAT6A (10 Gbps), 8-pole, Halogen-free, Shielded, Insulation displacement connection, Housing material: zinc die-cast, Nickel-plated, Outer cable diameter of 5-9.7 mm
Features
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Safe use in the field, thanks to a high degree of protection
- Reliable signal transmission – 360° shielding in environments with electromagnetic interference
- Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
Technical specifications
| Connection | IDC connection | |
| Version | cable connector | |
| Design | straight | |
| Colour | silver | |
| Cable diameter | 5 to 9.7 mm | |
| Cable cross-section | 0.25-0.5 mm² | |
| Rated voltage IEC | 60 V | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP65/IP67 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
