2688530 | Phoenix Contact

Bus coupler, 100 Mbit/s, 24 VDC, 2688530

Order No.: 64P8446
EAN: 4046356712903
MPN:
2688530
AXL F BK PB
Phoenix Contact
default L

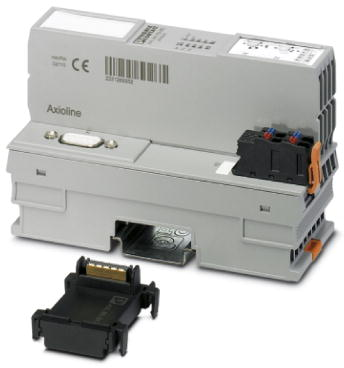

Image may differ
Unit Price (€ / pc.)
400.1494 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
400.15 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
400.1494 €

Bus coupler, 2688530, Phoenix Contact

Axioline F, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, Transmission speed in the local bus: 100 Mbps, Degree of protection: IP20, including bus base module and Axioline F connector.

Features

  • Electrical isolation between PROFIBUS interface and logic
  • Rotary coding switches for setting the PROFIBUS address
  • DP/V1 for class 1 and class 2 masters
  • PROFIBUS data transmission speed of 9.6 kbps to 12 Mbps
  • Dynamic configuration is supported
  • I-M functions
  • Firmware can be updated
  • Typical cycle time of the Axioline F local bus is around 10 μs
  • Supports the operation of Axioline Smart Elements
  • Supports passive Smart Elements (firmware version 2.20 or later)
Technical specifications
Version Bus coupler
Width 45 mm
Data transmission rate 100000000 mb/s
Height 126.1 mm
Interfaces profibus
Voltage 24 VDC
Depth 74 mm
Logistics
Country of origin DE
Customs tariff number 85176200
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
Interfaces
Depth
Version
Width
Data transmission rate
Height
Voltage
1 item in 4 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Interfaces
Depth
Version
Width
Data transmission rate
Height
Voltage
Bus coupler, 100 Mbit/s, 24 VDC, 2688530
Order No.:
 64P8446
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 2688530
Available: 0 pcs. Leadtime: On Request **
Total Price: 400.15 € *
1 pcs.
400.1494 €
profibus
74 mm
Bus coupler
45 mm
100000000 mb/s
126.1 mm
24 VDC
Bus coupler, 100 Mbit/s, 24 VDC, 2688899
Order No.:
 64P8440
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 2688899
Available: 0 pcs. Leadtime: On Request **
Total Price: 350.32 € *
1 pcs.
350.3241 €
ethernet
74 mm
Bus coupler
45 mm
100000000 mb/s
126.1 mm
24 VDC
Bus coupler, 100 Mbit/s, 24 VDC, 2688459
Order No.:
 64P8443
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 2688459
Available: 0 pcs. Leadtime: On Request **
Total Price: 419.27 € *
1 pcs.
419.2727 €
modbus
74 mm
Bus coupler
45 mm
100000000 mb/s
126.1 mm
24 VDC
Bus coupler, 100 Mbit/s, 24 VDC, 2688394
Order No.:
 64P8441
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 2688394
Available: 0 pcs. Leadtime: On Request **
Total Price: 544.32 € *
1 pcs.
544.3179 €
ethernet
74 mm
Bus coupler
45 mm
100000000 mb/s
126.1 mm
24 VDC
