2201517 | Phoenix Contact
PHOENIX CO 2201517
Order No.: 64P0958
EAN: 4046356832083
MPN:
2201517
EH 67,5-C DS/ABS BK9005
Unit Price (€ / pc.)
2.6061 € *
Available: 0 pcs.
Leadtime: On Request **

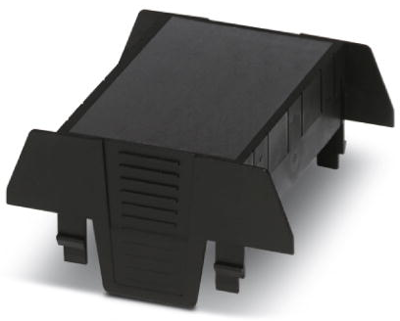

Upper part of housing, 2201517, Phoenix Contact
DIN rail housing, Upper housing part, Tall design, Connection opening on both sides, Width: 67.6 mm, Height: 75.26 mm, Depth: 36.95 mm, Color: black (9005).
Features
- DIN rail or wall mounting for application-specific device attachment
- Easy design-in, thanks to variable housing form factor
- Complete flexibility, thanks to PCBs with horizontal, frontal, and orthogonal orientation to the front of the device
- Three cover versions for individual PCB connections
- Integration of a wide variety of PCB connection technologies for a functional device design
Technical specifications
| Version | upper part of housing | |
| Type of mounting | snap-in | |
| Width | 67.6 mm | |
| Colour | black | |
| Height | 75.26 mm | |
| Material | ABS |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
