NXB8-18GM50-E2 | PEPPERL+FUCHS
Proximity switch, built-in mounting M18, 1 Form A (N/O), 100 mA, Detection range 8 mm, NXB8-18GM50-E2
Unit Price (€ / pc.)
57.2747 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
57.27 € *
Price list
Quantity
Price per unit*
1 pcs.
57.2747 €
5 pcs.
53.2644 €
10 pcs.
49.5397 €
25 pcs.
45.5770 €
*incl. VAT plus shipping costs
**Subject to prior sale

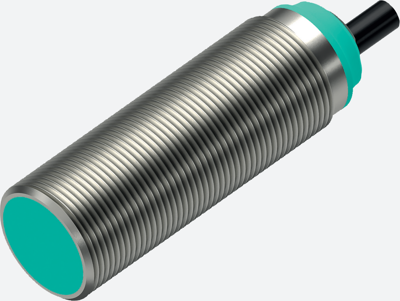

Proximity switch, NXB8-18GM50-E2, PEPPERL+FUCHS

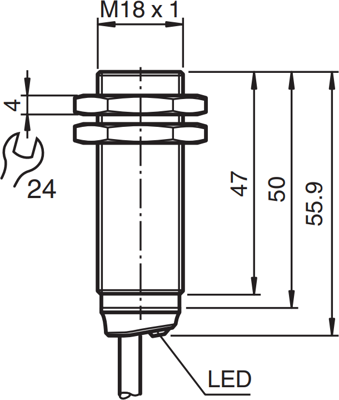

Protection class: IP 67, switching function: normally open (NO), output type: PNP, switching distance: 8 mm, mounting: flush, thread: M18x1 mm, operating voltage: 10...30 V, connection type: cable PVC, cable length: 2 m, housing material: nickel-plated brass
Technical specifications
| Connection | stranded wires | |
| Version | Inductive sensor | |
| diameter | 18 mm | |
| Detection range | 8 mm | |
| Length | 55.9 mm | |
| Assembly | built-in mounting M18 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | VN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
