NXB8-18GM50-E2-V1 | PEPPERL+FUCHS
Proximity switch, built-in mounting M18, 1 Form A (N/O), 100 mA, Detection range 8 mm, NXB8-18GM50-E2-V1
Unit Price (€ / pc.)
69.9601 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
69.96 € *
Price list
Quantity
Price per unit*
1 pcs.
69.9601 €
5 pcs.
65.0573 €
10 pcs.
60.5115 €
25 pcs.
56.2870 €
*incl. VAT plus shipping costs
**Subject to prior sale

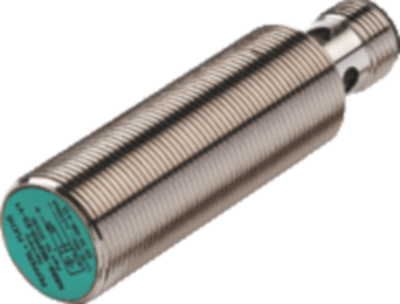

Proximity switch, NXB8-18GM50-E2-V1, PEPPERL+FUCHS
Protection class: IP 67, Switching function: Normally open contact (NO), Output type: PNP, Switching distance: 8 mm, Installation: flush, Thread: M12x1 mm, Operating voltage: 10...30 V, Connection type: Device plug M12x1, 4-pin, Housing material: Nickel-plated brass

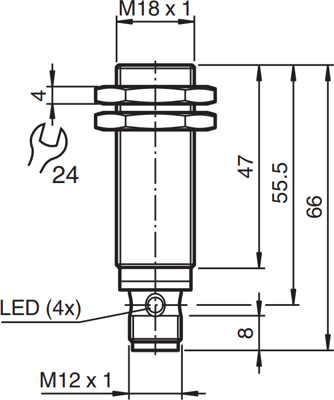

Technical specifications
| Connection | M12-connector | |
| Version | Inductive sensor | |
| diameter | 18 mm | |
| Detection range | 8 mm | |
| Length | 66 mm | |
| Assembly | built-in mounting M18 | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 100 mA | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | VN |
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
