418086 | PEPPERL+FUCHS
Print mark contrast sensor, 9.5 mm, NPN/PNP, 10-30 VDC, M12-connector, 418086
Order No.: 28G7485
EAN: 4050143053551
MPN:
418086
DK20-2497(/49)
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
394.5088 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
394.51 € *
Price list
Quantity
Price per unit*
1 pcs.
394.5088 €
2 pcs.
385.2268 €
*incl. VAT plus shipping costs
Subject to prior sale

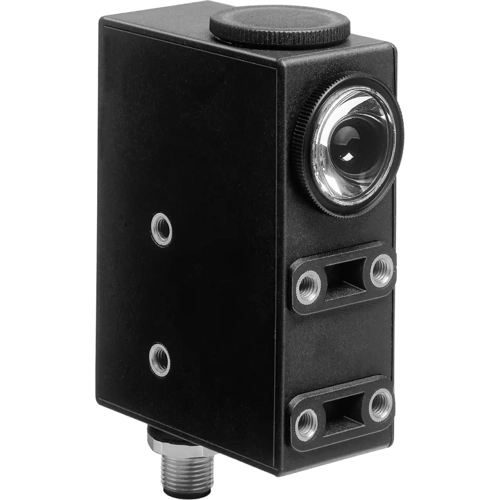

Print mark contrast sensor, DK20-2497(/49), PEPPERL+FUCHS
Print mark contrast sensor with plastic lens, 9.5 mm detection range, RGB light, light/dark on, external Teach-in, NPN output, PNP output, M12 plug.
Features
- Diffuse mode sensor for recording any print mark
- Static teach-in: automatic switching threshold adaptation
- 30 µs response time, suitable for extremely rapid scanning processes
- 3 emitter colors: green, red and blue
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | print mark contrast sensor | |
| Version | modulated visible red/green/blue light | |
| Detecting distance | 9.5 mm | |
| Output | NPN/PNP | |
| Connection | M12-connector | |
| Voltage | 10-30 VDC | |
| Power supply | 70 mA | |
| Activation time | 30 s | |
| Switching logic | light ON/dark ON (switchable) |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SG |
| Customs tariff number | 85365019 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
