GEE99F-C | Panduit
Edge protection profile, serrated edge, (W x H) 4.3 x 4.7 mm, max. clamping range 2.5 mm, PE, natural, GEE99F-C, package with 30,5 meters
Order No.: 12H3563
EAN: 0074983601752
MPN:
GEE99F-C
07498360175
Unit Price (€ / pck.)
70.8169 € *
Next delivery: 4 pck. on 2026-09-25
Total Price:
70.82 € *
Price list
Quantity
Price per unit*
1 pck.
70.8169 €
5 pck.
66.3901 €
10 pck.
61.9633 €
25 pck.
57.5365 €
50 pck.
53.1097 €
*incl. VAT plus shipping costs
Subject to prior sale
Slotted, type GEE.

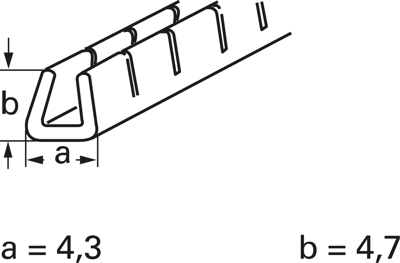

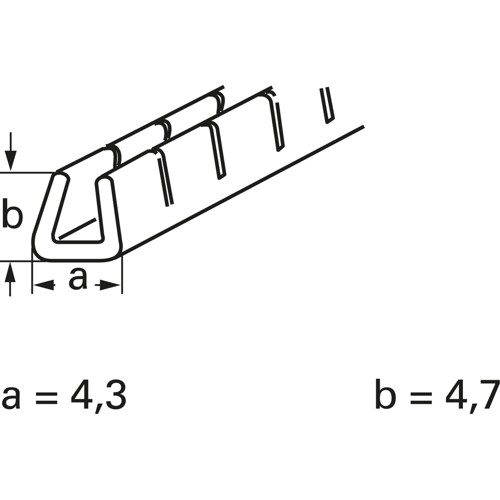

Technical attributes (type, wall thickness (W), dimension a (width), b (height)): GEE99F-C, W 1.6 to 2.5, a 4.3, b 4.7 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | serrated edge | |
| Width | 4.3 mm | |
| Height | 4.7 mm | |
| min. clamping range | 1.6 mm | |
| max. clamping range | 2.5 mm | |
| Material | PE | |
| Colour | natural | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 30.5 meters |
| Customs tariff number | 39269097 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
