GEE144F-C | Panduit
Edge protection profile, serrated edge, (W x H) 5.4 x 5.6 mm, max. clamping range 3.7 mm, PE, natural, GEE144F-C, package with 30,5 meters
Order No.: 12H3564
EAN: 0074983601691
MPN:
GEE144F-C
07498360169
Unit Price (€ / pck.)
79.968 € *
Available: 1 pck.
Next delivery: 2 pck. on 2026-07-17
Total Price:
79.97 € *
Price list
Quantity
Price per unit*
1 pck.
79.968 €
5 pck.
74.970 €
10 pck.
69.972 €
25 pck.
64.974 €
50 pck.
59.976 €
*incl. VAT plus shipping costs
Subject to prior sale
Slotted, type GEE.

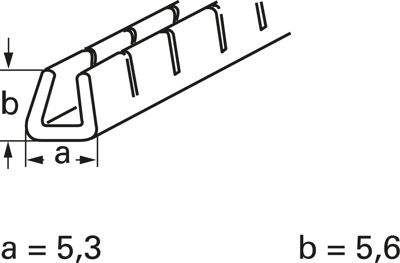

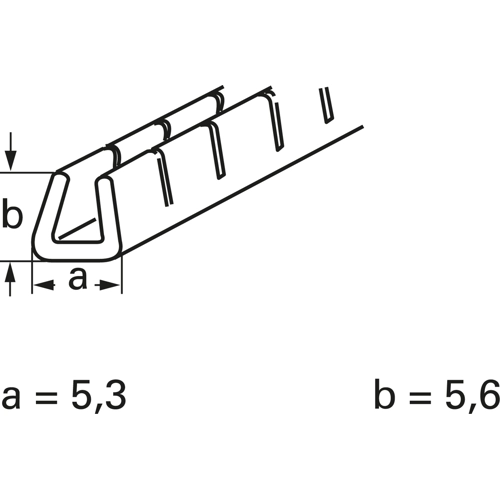

Technical attributes (type, wall thickness (W), dimension a (width), b (height)): GEE144F-C, W 2.5 to 3.7, a 5.3, b 5.6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | serrated edge | |
| Width | 5.4 mm | |
| Height | 5.6 mm | |
| min. clamping range | 2.5 mm | |
| max. clamping range | 3.7 mm | |
| Material | PE | |
| Colour | natural | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 50 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Original Packaging | Reel with 30.5 meters |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
