ST2L212FJ | Panasonic
Relay, 2 Form A (N/O), 12 V (DC), 640 Ω, 8 A, 250 V (DC), 380 V (AC), bistable, ST2L212FJ
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.7687 € *
Next delivery: 497 pcs. on 2026-05-28
Total Price:
12.77 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7687 €
10 pcs.
11.2336 €
50 pcs.
10.4601 €
150 pcs.
10.0079 €
500 pcs.
9.5081 €
*incl. VAT plus shipping costs
Subject to prior sale

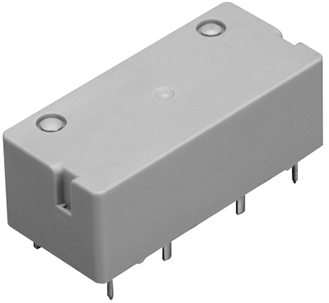

Power relay, type Panasonic ST.
Sealed, high impact and vibration resistance, monostable or bistable; Contact type: 1 x NO + 1 x NC, or 2 x NO. Contact material: AgSnO2, gold flashed. Switching voltage: max. 380 VAC/250 VDC. Switching current: max. 8.0 A. Breaking capacity: max. 150 W/2000 VA. Contact resistance: max. 30 mohm. Coil power: 240 mW. Breakdown voltage contact/coil: 3750 VRMS. Response/release time: max. 15/10 ms. Grid: 2.54 mm. Ambient temperatures: –40 to +60 °C. Certifications: VDE, SEV, UL, CSA.
Bistable Relay, 2 coils, 2 NO contacts, type ST2-L2-.
Technical attributes (type, rated voltage, coil resistance (±10 %)): ST2-L2-12V-F, 12 VDC, 640 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | 2 Form A (N/O) | |
| switching current | 8 A | |
| Coil voltage (DC) | 12 V | |
| Coil resistance | 640 Ω | |
| Switching Voltage (DC) | 250 V | |
| Switching Voltage (AC) | 380 V | |
| Connection | PCB connection | |
| Coil type | bistable | |
| Contact material | AgSnO2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
